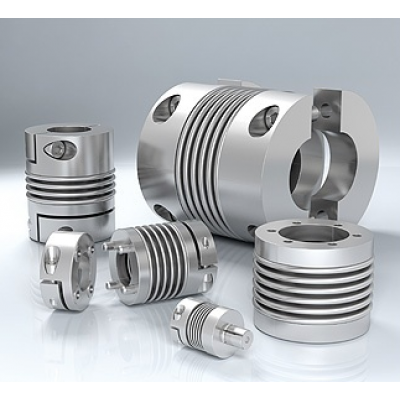

Mehaste sklopke

Sklopke brez zračnosti in torzijsko toge. Področje uporabe je pri zelo dinamičnih servo gredeh.

Standardne lastnosti:

  • Področje uporabe za vrtilne momente med 0,4 Nm in 5000 Nm
  • Različna torzijska trdnost
  • Visoka natančnost prenosa rotacijskega kota
  • Majhne dimenzije, nizek moment
  • Kompenzacija radialnih in aksialnih sil
  • Neobčutljivost na temperature med -30 °C in +100 °C (višji temperaturni razred – opcija)
  • Izravnave premikov
  • Mali masni vztrajnostni momenti



Možnosti uporabe:

  • Pakirni stroji
  • Obdelovalni stroji za les, kamen, pločevino, tekstil
  • Tiskarski stroji
  • Črpalke z aksialnimi in vertikalnimi pogoni
  • Naprave za avtomatizacijo
  • Industrijska robotika

Brošura mehaste sklopke



  • EKN

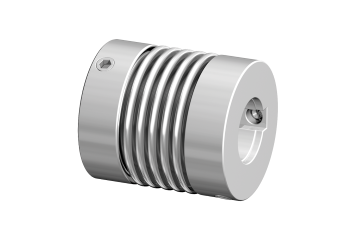

    EKN

    GERWAH's 'EKN miniatur' is a backlash-free metal bellows coupling which boasts a very compact shape. The miniature coupling is connected to the shaft by means of radial set screws instead of a clamping hub. The element can be used in many different areas and displays all its advantages when misalignments between driver and driven components have to be compensated.

    Product details and sizes

  • DKN

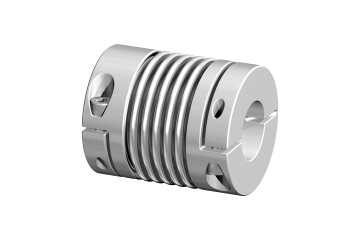

    DKN

    Thanks to its compact design, GERWAH's Metal Bellows Coupling model 'DKN' is perfectly qualified for backlash-free connections in confined spaces. It is mounted on driver and driven components by means of clamping hubs. High-quality build and material guarantee for maximum durability.

    Product details and sizes

  • DKN/S

    DKN/S

    The DKN/S series is characterized by its compact shapes and a low moment of inertia. The shaft connection can be realized by means of a clamping hub on one side and an expanding clamp on the other. In addition, this pioneering element produced by GERWAH boasts unequalled product quality.

    Product details and sizes

  • PKA

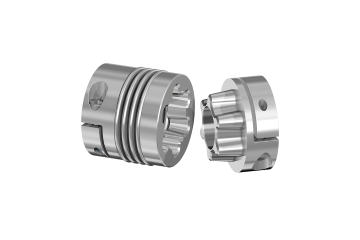

    PKA

    Backlash-free Metal Bellows Coupling
    Series PKA

    Series PKA with clamping hub

    - Metal bellows made of stainless steel, hubs made of aluminum
    - Backlash-free and torsional stiffness
    - High-tensile pluggable hub
    - High power performance
    - Wear- and maintenance-free
    - Axial pluggable
    - Easy mounting and dismounting

    Product details and sizes

  • PKB

    PKB

    Backlash-free Metal Bellows Coupling
    Series PKB

    Series PKB with locking ring

    - Metal bellows made of stainless steel, hubs made of aluminum
    - Backlash-free and torsional stiffness
    - High-tensile pluggable hub
    - High power performance
    - Wear- and maintenance-free
    - Axial pluggable
    - Axial mountable from in- and outside

    Product details and sizes

  • PKN

    PKN

    GERWAH's 'PKN' unites the tried and tested technical advantages of a metal bellows coupling and a plug-in connection. These elements do not need any axial initial load due to tightening and thus allow for easy mounting and disassembly. The PKN series is the perfect choice when power has to be transmitted from shaft to shaft with the greatest possible angular accuracy.

    Product details and sizes

  • AKN

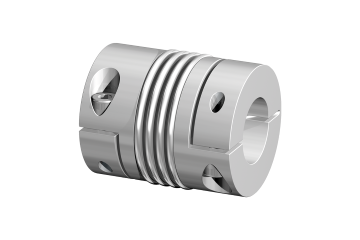

    AKN

    The metal bellows couplings from the 'AKN' series boast GERWAH's trusted quality and increased torsional stiffness. The reduced shafts in the element guarantee for high stiffness while at the same time compensating angular, axial and radial misalignments. The shaft connection is established by means of clamping hubs on both sides.

    Product details and sizes

  • AKN-H

    AKN-H

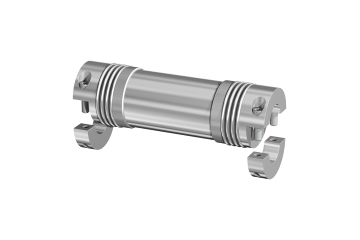

    The AKN-H combines the advantage of the AKN Metal Bellows Coupling with an easy installation. The clamping hubs in split hub design can be mounted lateral at the aligned shaft extensions.

    Product details and sizes

  • AKD

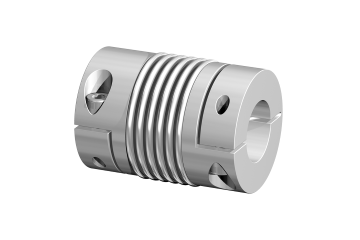

    AKD

    GERWAH's production series 'AKD' offers the traditional metal bellows coupling which can be used for a wide range of applications. Its core characteristics are the backlash-free transmission of torque, high torsional stiffness, and excellent compensation of angular, axial and radial misalignments. Operational safety and easy assembly are two more factors speaking in favour of AKD.

    Product details and sizes

  • AKD-H

    AKD-H

    The AKD-H combined the advantage of the AKD Metal Bellows Coupling with an easy installation. The clamping hubs in split hub design can be mounted lateral at the aligned shaft extensions.

    Product details and sizes

  • AK

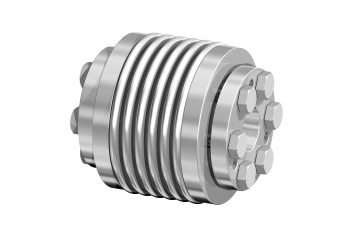

    AK

    Metal bellows couplings from the 'AK' series have been designed especially for the backlash-free transmission of high torques of up to 5,000 Nm. The elements are mounted on driver and driven components with tapered clamping bushings. Depending on the required size, the coupling will be produced with hubs made of aluminum or stainless steel. In addition, AK guarantees for perfect concentric running.

    Product details and sizes

  • CKN

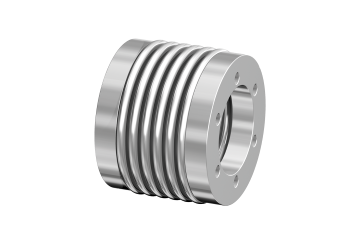

    CKN

    'CKN' is GERWAH's production series which grants customers a maximum of application liberties. The flange mounting offers manifold possibilities to establish a connection with the element or add hubs, flanges and fittings. Depending on the chosen model, CKN has been designed for very high torques of up to 5,000 Nm.

    Product details and sizes
