Parkljaste sklopke

Natančne in malih dimenzij. Izravnalni element je venec iz elastomera. Preko sklopa elastičnega venca in pesta se vrši prenos vrtilnega momenta in dušenje vibracij. Elastični venec določa lastnosti sklopke ali celotnega pogonskega sklopa.

Standardne lastnosti:

  • Področje uporabe za vrtilne momente med 0,5 Nm in 650 Nm
  • Natične izvedbe
  • Dušenje vibracij
  • Kompenzacija radialnih in aksialnih sil
  • Izravnave kotnih, bočnih in aksialnih pomikov
  • Električno izolirane

Možnosti uporabe:

  • Precizne aplikacije
  • Industrijska robotika, regulacijska in pozicionirna tehnika
  • V skoraj vseh industrijskih procesih
  • Linearni premiki
  • Merilni inštrumenti
  • Pogonska tehnika s servo motorji
  • Naprave za avtomatizacijo, obdelovalni stroji, stroji za pakiranje, tiskarski stroji


Brošura parkljaste sklopke



Parkljaste sklopke opis in tehnične lastnosti:

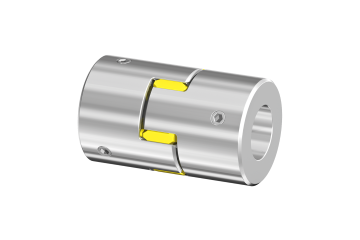

Miniature coupling with set screw hubs RINGFEDER® GWE 5102 is a compact miniature coupling and the solution for low torque and narrow installation spaces. The coupling halves are fixed to the shaft with threaded pins rather than with clamping hubs. The shaft tolerance should lie within the fitting tolerance ‘g6’ to ‘h7’. Two threaded pins offset by 120° produce the contact pressure between the coupling hub and the shaft that is necessary to transmit the torque. The elastomer spiders are available in different Shore hardness levels. Whichever version you choose: RINGFEDER® GWE 5102 miniature is electrically insulating and vibration damping.

Self-aligning coupling with clamping hubs, short length and single slit The RINGFEDER® GWE 5103 series of backlash-free jaw couplings is characterised among other things by its compact design with low moment of inertia. It comprises two single-slit coupling hubs with high concentricity and one elastomer spider that can be supplied in different Shore hardness levels. The shaft tolerance should lie within the fitting tolerance ‘g6’ to ‘h7’. The elastomer spider produces a backlash-free, puncture-proof, damped and electrically insulated connection.

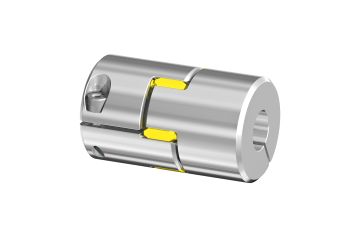

Miniature coupling with extended clamping hubs and single slit The RINGFEDER® GWE 5103.1 series of backlash-free jaw couplings excel with their compact design. It comprises two single- slit long coupling hubs with high concentricity and one elastomer spider that can be supplied in different Shore hardness levels. The shaft tolerance should lie within the fit tolerance ‘g6’ to ‘h7’. The elastomer spider produces a backlash-free, puncture-proof, damped and electrically insulated elastic jaw coupling.

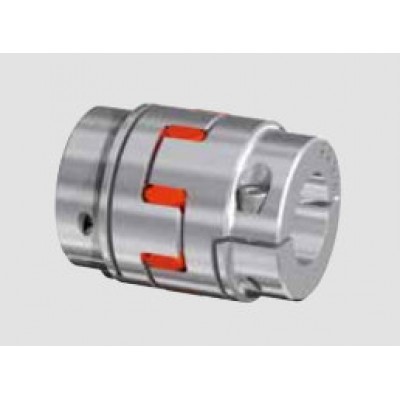

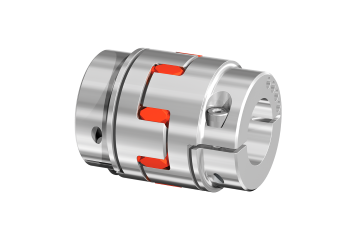

Self-aligning coupling with clamping hubs and dual slits Jaw couplings in the series RINGFEDER® GWE 5104, with clamp hubs and a high level of international standardisation. Up to size 19 it comprises two axially (single-)slit and from size 24 two axially and radially (double-)slit clamp hubs with high concentricity and an elastomer spider that can be supplied in different levels of Shore hardness. The shaft tolerance should lie within the fit tolerance ‘g6’ to ‘h7’. The coupling is available with elastomer spiders in different Shore hardness levels and impresses with its special damping properties.

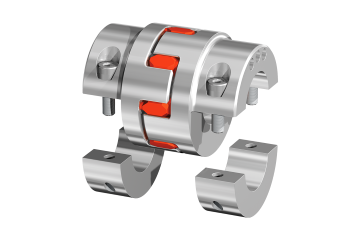

Self-aligning coupling with clamping hubs in split hub design The RINGFEDER® GWE 5106 combined the advantage of the RINGFEDER® GWE 5104 Servo-Insert Coupling with an easy installation. The clamping hubs in split hub design can be mounted lateral at the aligned shaft extensions. The shaft tolerance should lie within the fit tolerance ‘g6’ to ‘h7’.

Self-aligning coupling with clamping hubs and expanding clamps The RINGFEDER® GWE 5107 is a compact and backlash-free jaw coupling with expanding mandrel and clamping hub. The expanding hub is mounted in a hollow shaft by tightening the tensioning screw. We recommend a bore tolerance of H7 for the hollow shaft. The shaft tolerance for the clamping hub should lie within the fit tolerance of ‘g6’ to ‘h7’.

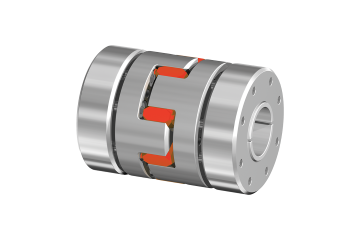

Self-aligning coupling with outer cone RINGFEDER® GWE 5112 is a backlash-free balance coupling with outer cone that is also suitable for the highest speeds. The best possi- ble concentricity of the coupling parts that is necessary for this is made possible by the symmetrical structure and the precise manufacture. High clamping force is produced on the shaft by tightening the easily accessible screw connection on the conical outer tensioning ring and this counters the impact of centrifugal force and has a positive effect on the torque transmission. The shaft tolerance should lie within the fit tolerance of ‘g6’ to ‘h7’

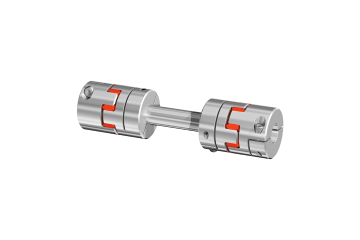

Self-aligning coupling with clamping hubs for large shaft spacings The backlash-free jaw coupling of the RINGFEDER® GWE Z5104.1 series that is designed as a torsionally flexible intermediate shaft is used where torque or rotation need to be transmitted with the greatest possible angle precision and a large shaft separation needs to be bridged. It comprises two RINGFEDER® GWE 5104, connected by a precision hollow shaft in steel. The shaft tolerance should lie within the fit tolerance of ‘g6’ to ‘h7’.

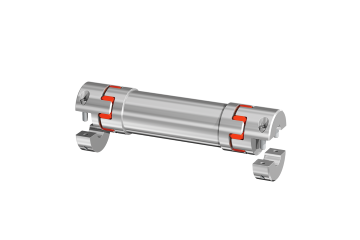

Self-aligning coupling with clamping hubs in split hub design for large shaft spacings As for the GWE Z5104.1 this balancing coupling RINGFEDER® GWE Z5106.1 is also used to bridge large shaft separations. The clamping hubs in a half shell structure mean that the known benefits are supplemented by the advantage of single radial assembly on the previously aligned shafts. It comprises two RINGFEDER® GWE 5106, connected by an aluminium precision intermediate pipe. The shaft tolerance should lie within the fit tolerance of ‘g6’ to ‘h7’.
